Trent Canal
A Publication by Rogers
(Description)



Richard Birdsall Rogers published this material which included maps of the Trent Canal. The narrative explained the history of the area, the dimensions of the Canal, description of the Route, the Hydraulic Lock No. 1, Water Supply and Barge Navigation. Following are a sample of the images found inside the publication.

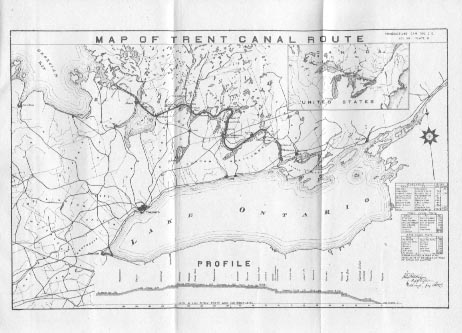

Map of Trent Canal Route
(Rich.d B. Rogers, Supt. Engineer Peterborough, Ont., July 16, 1897)





Trent Canal Hydraulic Lift Lock No. 1 Ground Plan
Plan of Lock - Chamber Pits
Lock- Chamber Gates and Floor-Plates Removed
(Rich'd B. Rogers, Superintending Engineer)

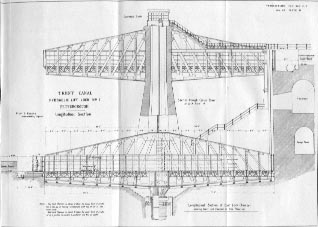

Trent Canal Hydraulic Lift Lock No. 1 Longitudinal Section
(Rich'd B. Rogers, Superintending Engineer)
